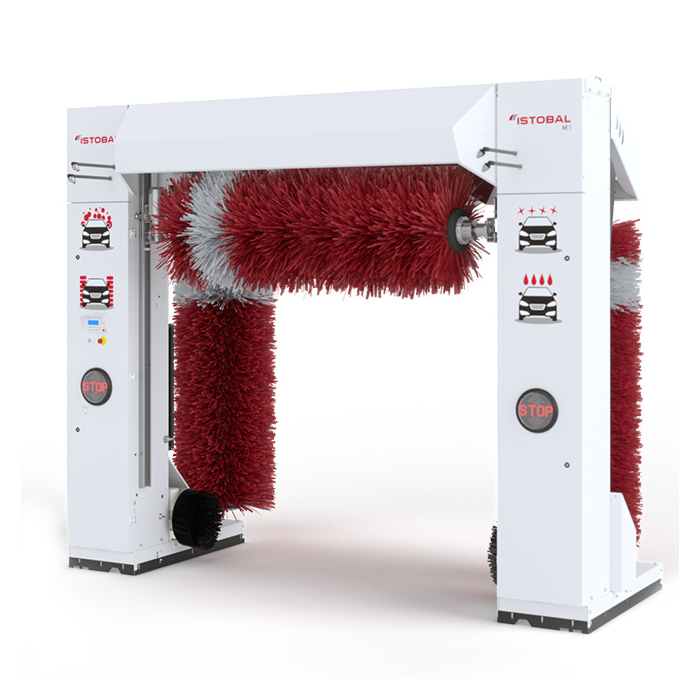

ISTOBAL M1

ISTOBAL’s most competitive model is surprising in many ways: aesthetics, mechanics and function. This model is intended to offer a quality simple wash. Designed with pure lines on the outside, the model is highly reliable technologywise.

Customize your M1

We want to advise you

Feel the confidence of having a team of professionals who advise you and accompany you throughout the process.

Name*

Last Name*

Email*

Phone Number*

City/State*

Country*

Below, you can read a summary of our Privacy Policy

In addition, I authorise Istobal S.A. for:

That you can send me commercial communications, both electronically and non-electronically, about your products and services.

That I can communicate my data to distributors in order to respond to queries that have been sent to us through the contact channels.

Description

Functionality comes first.

Developed by ISTOBAL, this model comes to complete our rollover family. A machine with the necessary equipment to achieve the quality and effectiveness demanded by the market.

Performance

Wash phases

The new arrangement of the nozzles, used for the application of shampoo and water during the rinsing step, maximises performance, minimises consumption and optimises product application.

Shampoo

6 nozzles on structure 5.82 L/min [1.28 gpm],3 bar [43.5 PSI]

Rinse

2 external nozzles on structure 19.6 L/min [5.178 gpm],3 bar [43.5 PSI].

Technology

Controller

PLC with unified modules and flexible configuration possibilities for optional extras. The use of the Profinet communication protocol enhances communication and reduces machine wiring and connections

Command post

Allows all of the machine’s external optional extras to be connected. It can be external to the structure or built-in

Structure

Compact design

A galvanized compact structure designed to optimize the assembly of all parts and components, with a solid but attractive appearance.

Mechanism

Vertical brushes

Complete overlapping scrub by vertical brushes with variable speed drive-controlled travel.

Brochure

Options

Dry

The 12 kW static dryer is made up of two top nozzles and two side nozzles, with four turbines, 3 kW each.

Underchassis wash

Two options are possible: static underchassis wash 10 bar [145.038 PSI], 90 L/min [19.8 gpm], and oscillating underchassis wash 15 bar [217.557 PSI], 120 L/min [26.4 gpm].
